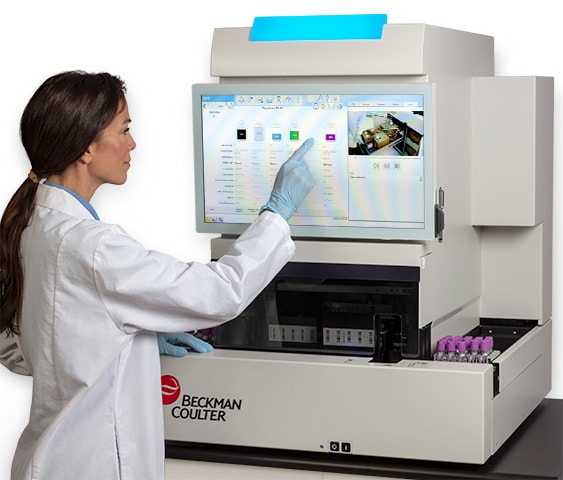

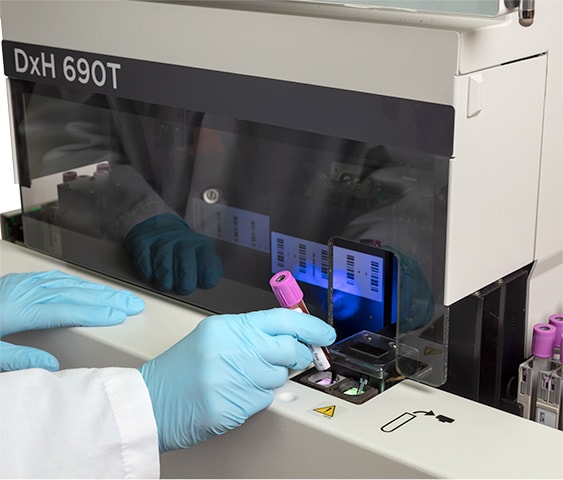

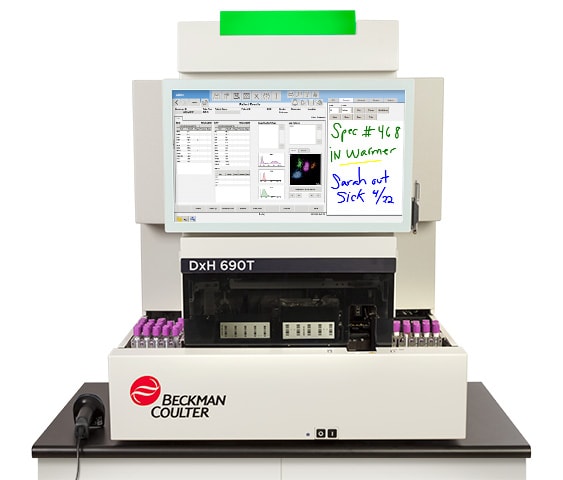

DxH 690T
Benchtop analyzer for mid-volume labs, up to 100 samples per hour. CBC with differential, reticulocytes, body fluids and MDW.
- Brand
- Suitable for
- Mid-volume laboratories
- Benchtop analyzer, up to 100 samples per hour
- CBC with five-part differential, reticulocytes and body fluids (cerebrospinal, serous, synovial)
- Monocyte Distribution Width (MDW) as an early sepsis indicator, when enabled
- Enhanced Coulter Principle and VCS 360 with DataFusion characterise cells in a near-native state, with fewer reruns and slide reviews
Technical specifications
| Methodology | Enhanced Coulter Principle, VCS 360 with DataFusion |
|---|---|
| Throughput | Up to 100 samples/hour |
| Sample volumes | Whole blood: 165 µL aspiration volume. Predilute: 50 µL whole blood into 200 µL of diluent |
| CBC | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, RDW-SD, PLT, MPV |
| Differential | NE%, LY%, MO%, EO%, BA%, NRBC%, NE#, LY#, MO#, EO#, BA#, NRBC#, MDW (when enabled) |
| Reticulocytes | RET, RET#, MRV, IRF |
| Body fluids (cerebrospinal, serous, synovial) | RBC, TNC |
| WBC measuring range | 0.050–400.000 × 10³ cells/µL |
| RBC measuring range | 0.005–8.500 × 10⁶ cells/µL |
| HGB measuring range | 0.10–25.50 g/dL |
| MCV measuring range | 50.00–150.00 fL |
| RDW measuring range | 10.00–40.00 % |
| RDW-SD measuring range | 15.00–150.00 fL |
| PLT measuring range | 3.0–3000.0 × 10³ cells/µL |
| MPV measuring range | 5.00–25.00 fL |
| TNC measuring range (body fluids) | 20–89,000 cells/mm³ |
| RBC measuring range (body fluids) | 1,000–6,200,000 cells/mm³ |
| Data management | Up to 50,000 patient results with histograms, scatter plots and demographics; 100,000 patient results with graphics on the Power Computer |
| Quality assurance | QC with Levey-Jennings graph; XB/XM moving averages; daily check; intelligent quality monitoring; customizable calibration and QC reminders; automatic QC export |
| Acoustic noise | ≤ 60 dBA |
| Electromagnetic compatibility | EN 61326-1, EN 61326-2-6 |
| Power consumption | Analyzer (SPM): 520 W; monitor: 35 W; DxH Power Computer: 160 W |
| Dimensions | Width 76.2 cm (30 in); height 90.17 cm (35.5 in) cover closed, 113.03 cm (44.5 in) cover open; depth 83.82 cm (33 in) with the removable back panel, 80 cm (31.5 in) without |
| Weight | About 141.97 kg (313 lb) with monitor; about 136.98 kg (302 lb) without |
| Clearance | 15.2 cm (6.0 in) per side for troubleshooting; 3.8 cm (1.5 in) behind for cooling |
| Downtime | Minimum 30 minutes in cleaner every 24 hours, with automatic daily checks |
